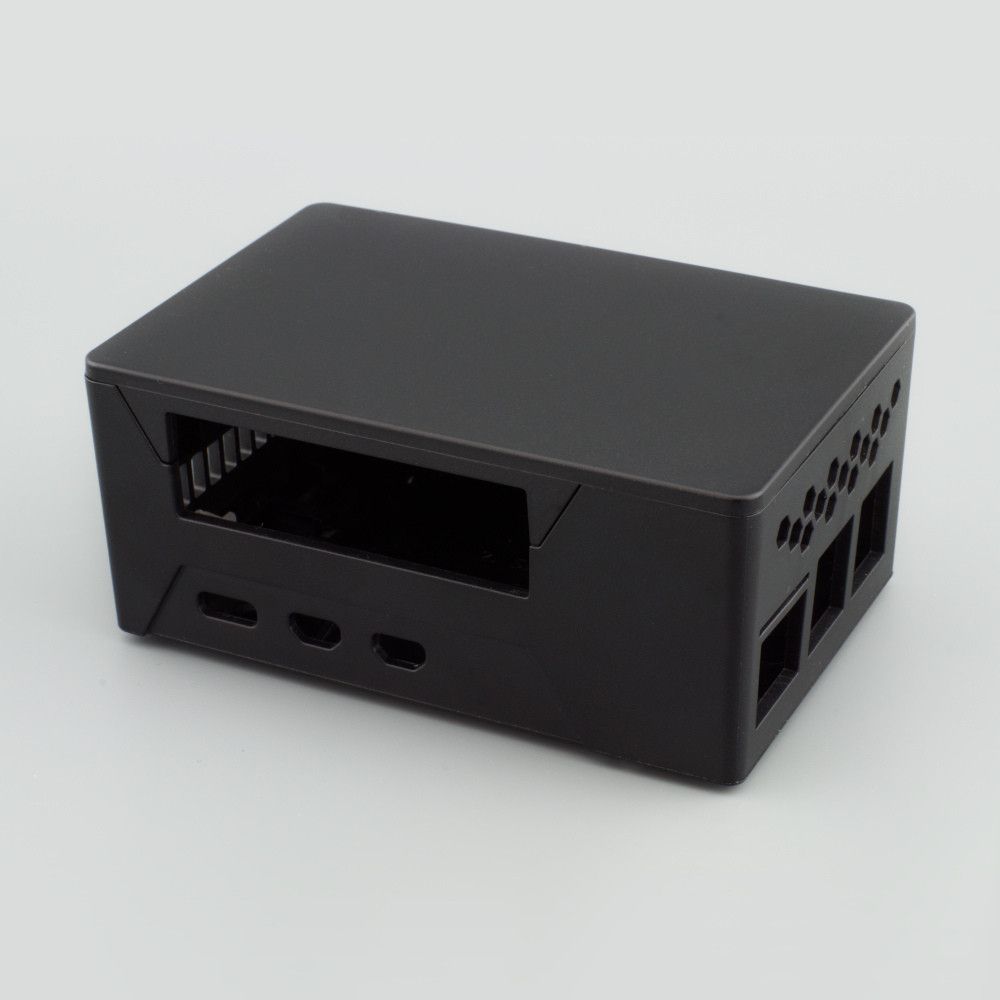

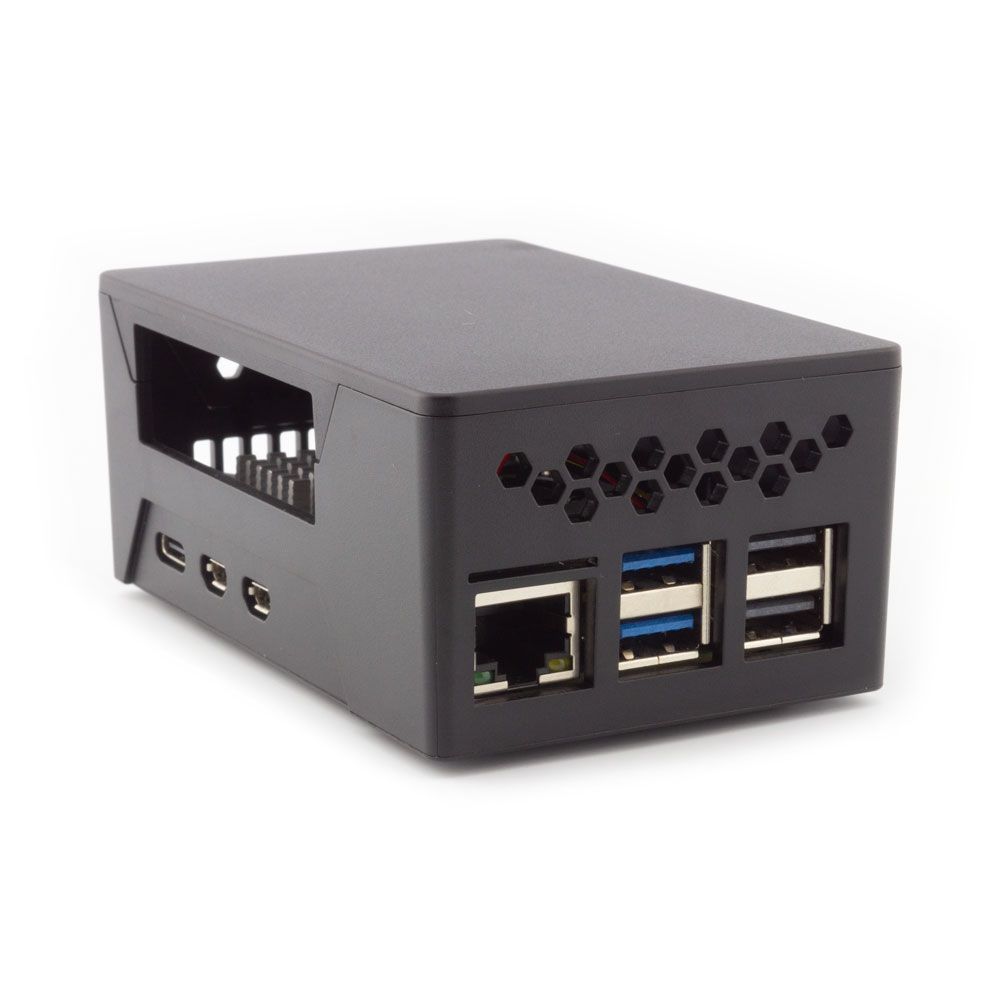

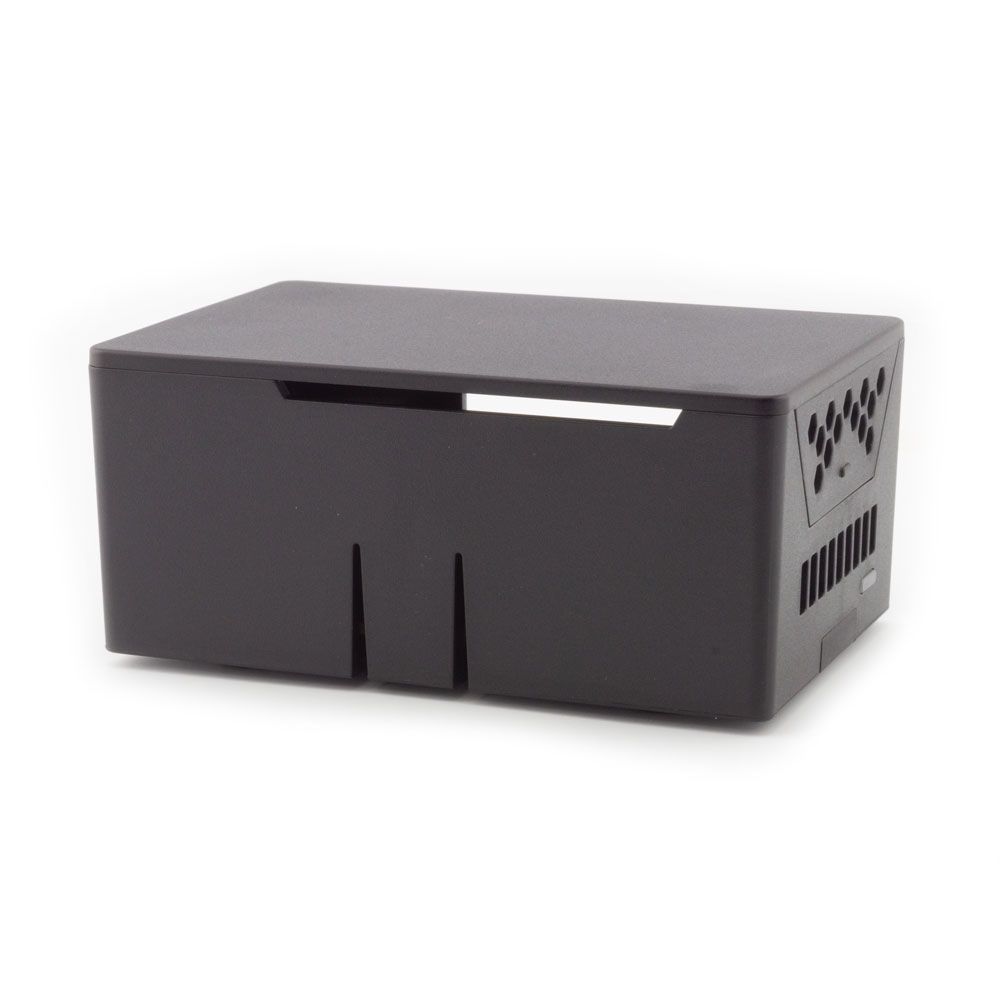

This HighPi Pro case is made specifically for Raspberry Pi 5 and a wide variety of HATs. It supports active cooling with the Raspberry Pi Active Cooler, has a removable microSD card cover, and a secure tool-free lid design. We're especially proud of the illuminated status LED / power button, making it easy to see the status LED and operate the Pi5's new power button without opening the case.

What Fits Inside

The generous internal volume provides plenty of room for the add-ons you love. Specifically:

• Raspberry Pi 5 board
• Raspberry Pi Active Cooler or a variety of heatsinks
• 16mm standoff set and header extension (May be required for correct HAT height, sold separately)
• Most HATs available on the market that are compatible with Pi 5

Features

• Industry-leading ease of use, rapid tool-free assembly and disassembly

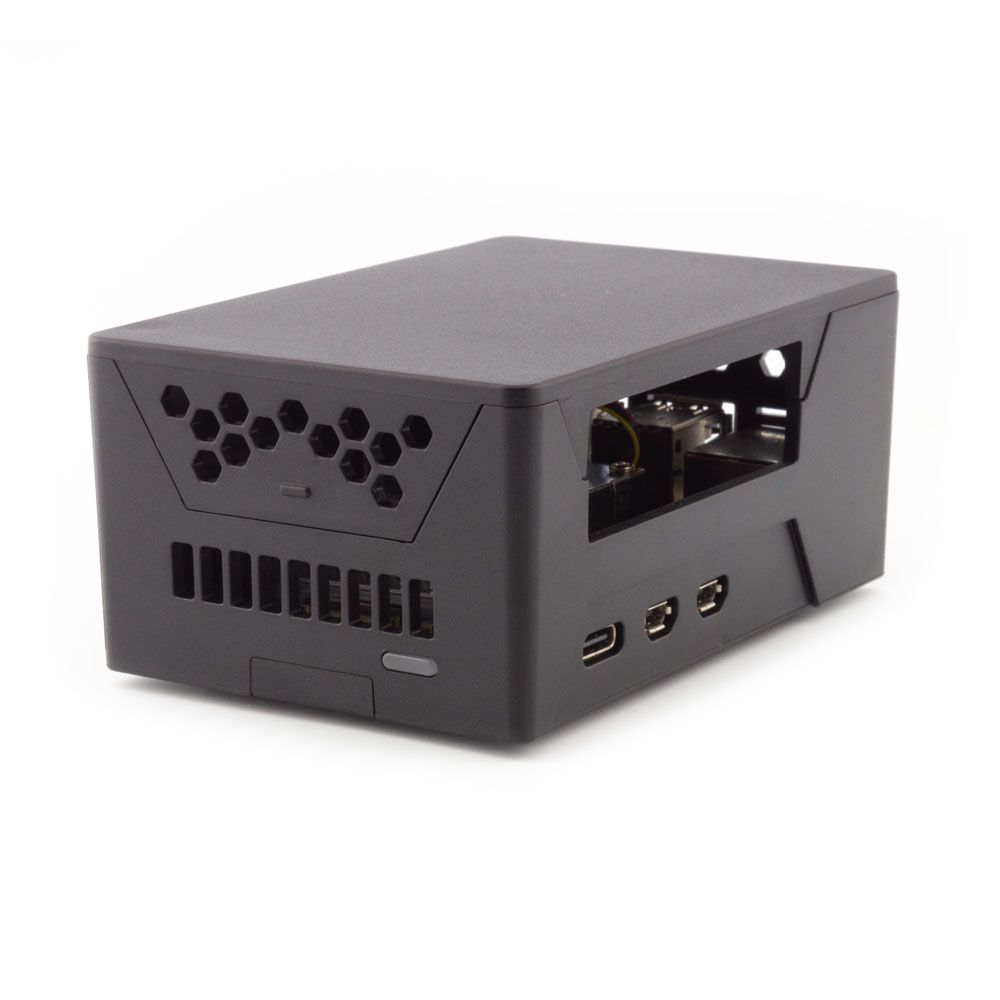

• Illuminated status LED / power button
• Large internal volume for a wide variety of HATs
• Self-adhesive rubber feet included, set of 4

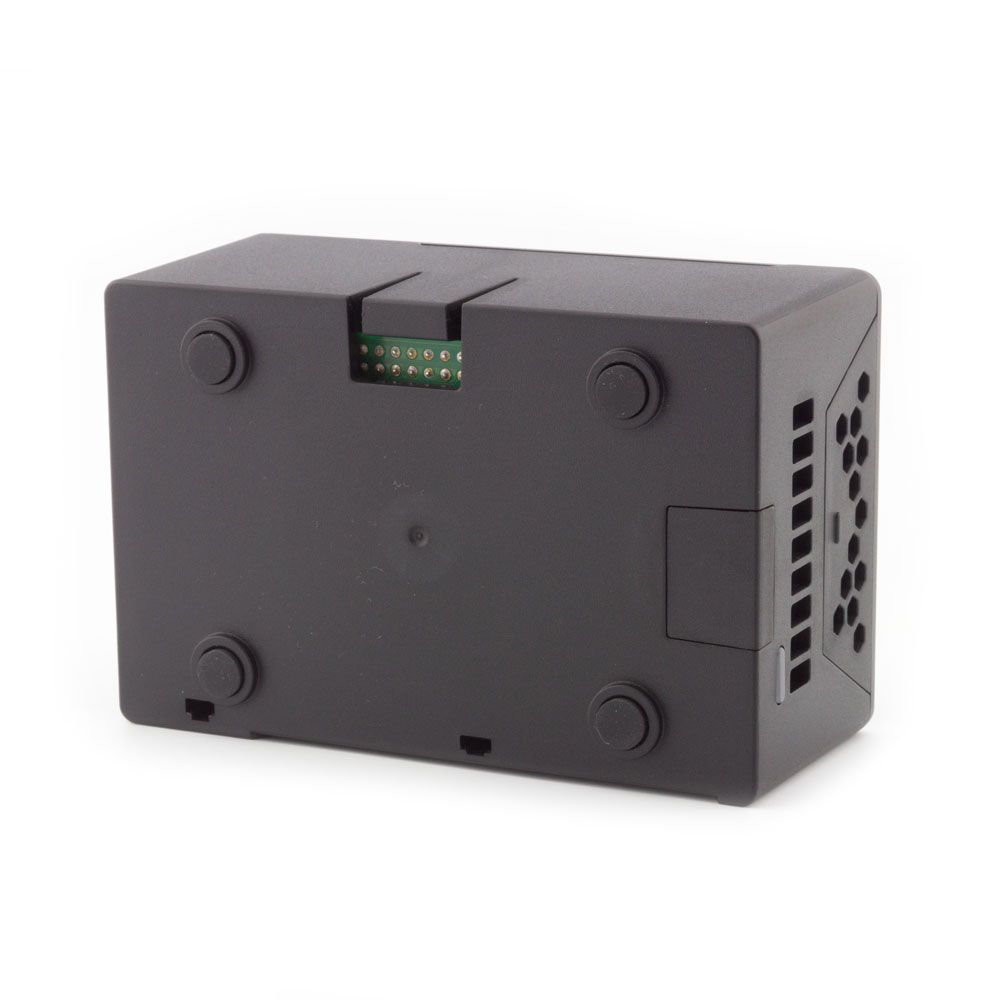

• GPIO ribbon cable port
• Optional active cooling, software-controlled
• Secure microSD card cover: removable from inside case with tool
• VESA mount support: an optional mounting plate provides VESA or wall-mounting

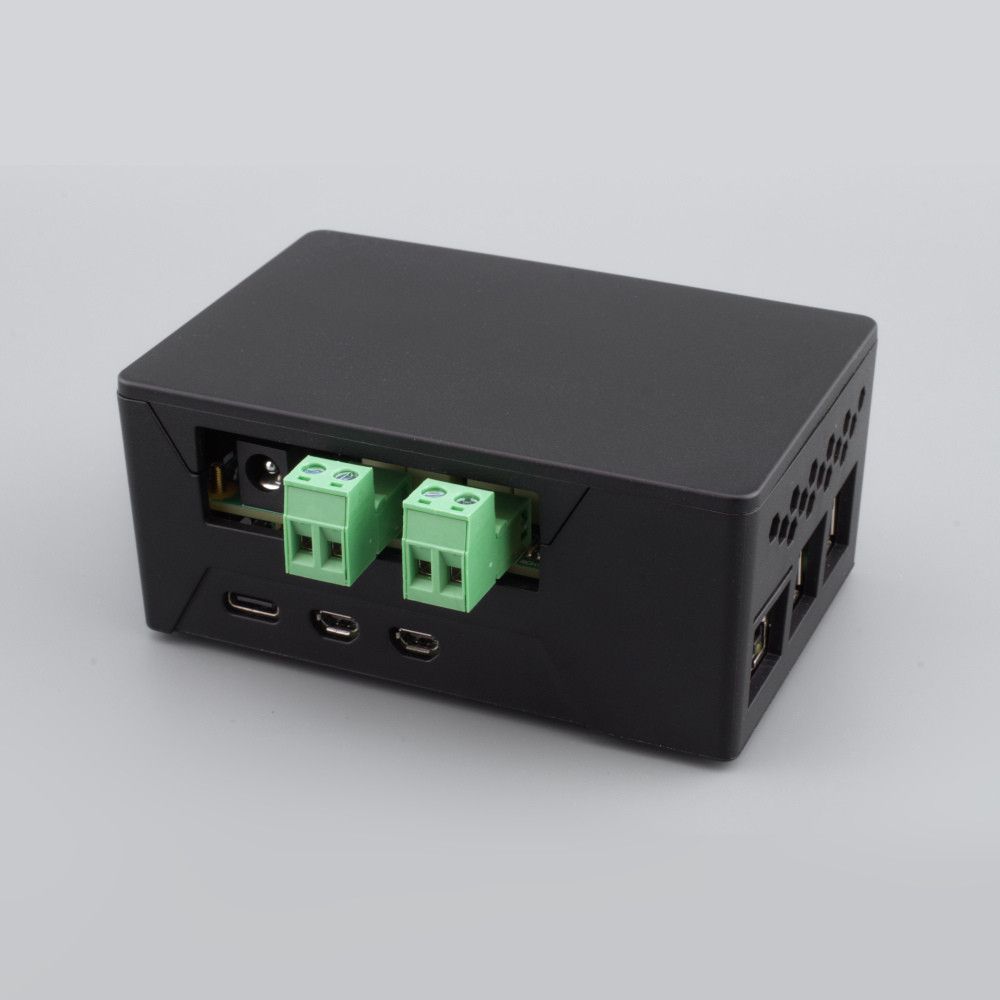

• Customizable: Molding-configurable output ports: available in multiple options, customizable for 1000+
• The top of the case can have a printed logo for your branding

Specifications

• External dimensions: 101.5 x 67.2 x 46.1mm
• Internal volume for breakout boards: 80 x 56 x 34mm

Assembly Instructions

1. Attach the active cooler or heatsink to the Pi board
2. Attach the HAT to the Pi board using 16mm standoffs and a header extension if required

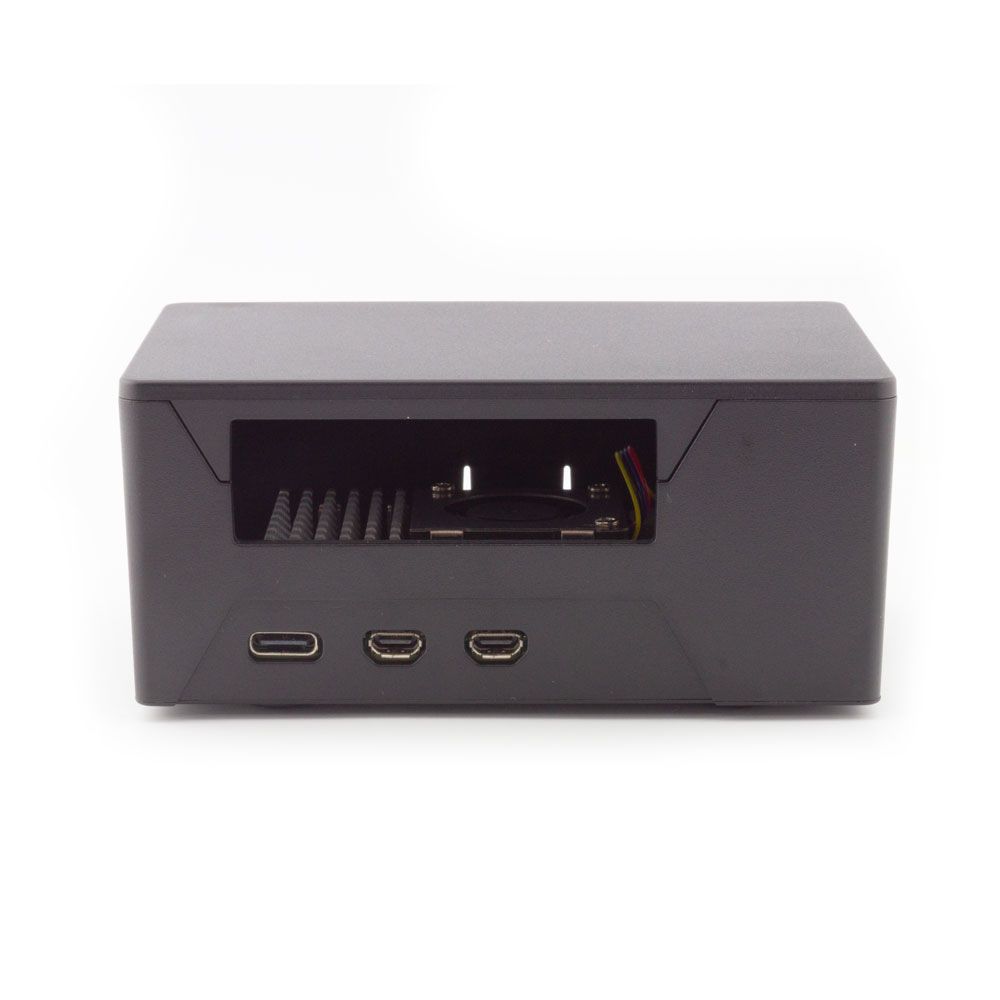

3. Insert the front ports of Pi board (USB-C, microHDMI) into their openings
4. Gently push down the back edge of the Pi board (near the GPIO pins) until that edge clicks under its snap
5. Insert the USB end of the lid first, and then push the opposite end down until until it clicks
